Cat.5e FTP(Outdoor) Horizontal Cable(PE)

  • Cat.5e FTP(Outdoor) Horizontal Cable(PE)
  • Cat.5e FTP(Outdoor) Horizontal Cable(PE)
  • Cat.5e FTP(Outdoor) Horizontal Cable(PE)
Cat.5e FTP(Outdoor) Horizontal Cable(PE)
  • Overview
  • Feature
  • Technical Specification

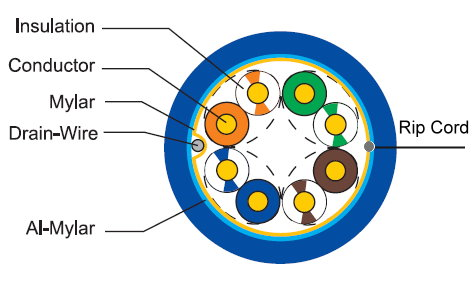

Cat.5e FTP (4P, Outdoor) Horizontal Cable is constituted by a piece of 4P 24AWG single core copper stranded wires. It meets Cat.5e standard. The insulation is made of HDPE material and with color plastic code. The conductor is wrapped by Aluminum foil, so as to be shielded. The jacket material is PE. The measurement unit of the cable length is Meter (M).

FTP solid,4 pairs, cat5e, outdoor Lan cable

Insulation material: PE

Jacket: LDPE

Outer shielded: AL-Mylar coverage

Performance:

  ●20 Conductor Resistance ≤9.38Ω/100m

  ●Resistance Unbalance:2%

Compatible with 10/100 Bare-T networks and feature enhanced 550 MHz bandwidth for distributing data, voice, and video at high-speeds

Length:100m/carton,305m/carton



Download Specification:


userfiles/20170808085437145.pdf
